RegalFrame® Knockdown

1/1
Knockdown doorframe to suit stud construction
Product Description

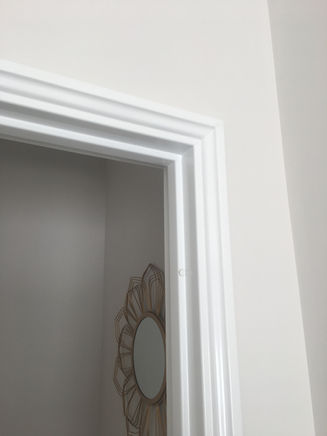

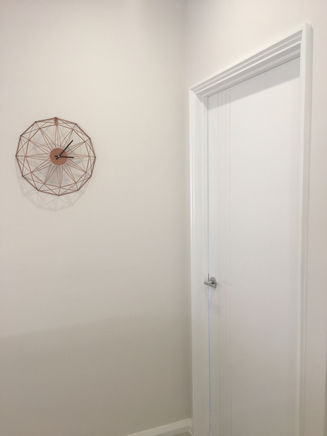

The RegalFrame profile is available in the knockdown range and is used for stud frame construction.The patented knockdown design system allows the mitre corners to be adjusted, resulting in an accurate and neat mitre joint.The RegalFrame has a built-in architrave to give a timber look doorframe with the added strength and durability of a metal doorframe.

Technical Information

The RegalFrame Knockdown doorframe is made from a 1.0mm Zincanneal.
The frames come in 3 pieces consisting of a head,a hinge stile and a striker stile.These are then packed together to make a complete frame.The knockdown frame is available in all standard sizes and can also be made to suit special widths and heights.

Important Info

Note: A minimum nib on each side of the stud opening is needed to allow for the knockdown frame to be screwed to the stud work

Patented Info: RegalFrame® profile and knockdown system
