JDS Deluxe Knockdown

1/1

Knockdown doorframes to suit stud construction

Product Description

The JDS Deluxe Knockdown is used for stud frame construction. JDS Metal doorframes has decided to manufacture the Deluxe profile in the knockdown system to cater to clients that are renovating or adding an extension to their property, using stud frame construction and would like to keep the same profile as existing doorframes. The patented knockdown design system allows the mitre corners to be adjusted, resulting in an accurate and neat mitre joint.

Technical Information

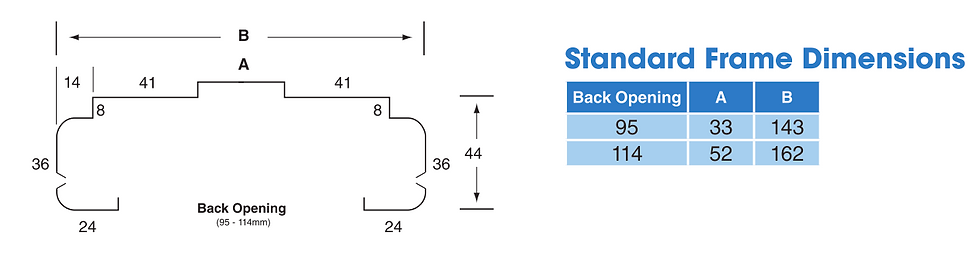

The JDS Deluxe Knockdown doorframe is made from a 1.05mm Zincanneal. The frames come in 3 pieces consisting of a head, a hinge stile and a striker stile. These are then packed together to make a complete frame. The knockdown frame is available in all standard sizes and can also be made to suit special widths and heights.

Important Info

Note: A minimum nib on each side of the stud opening is needed to allow for the knockdown frame to be screwed to the stud work
